MV Agusta Hyper-Lite
/ License Plate Relocator Install How-To
|

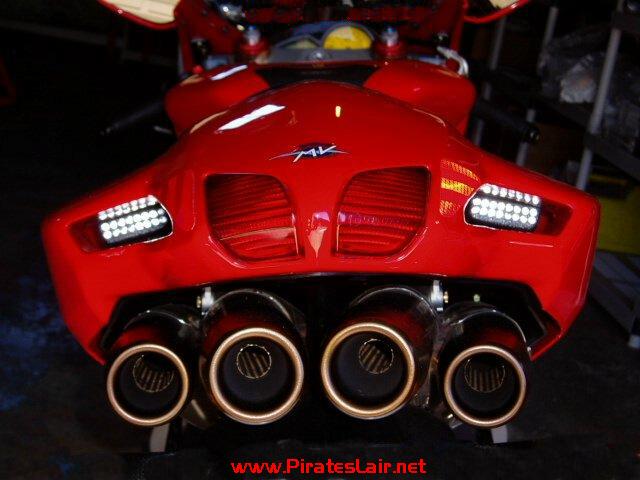

| Having ridden motorcycles for over 35 years and 400,000+ accident-free miles... safety is a big factor in my two-wheeled reality. One of the first things I decided after the purchase of my 03 MV F4 was to both rid myself of the stock fender and add some state of the art lighting. My results speak for themselves... Here is a step-by step of what I've done.... Please read our disclaimer before attempting this install yourself... |
| Wiring Codes Warning: One problem you may or may not encounter during this install may involve the factory wiring codes... We've checked wiring on about a dozen MV's... NONE matched the shop manual for the most part.. and out of the dozen or so.. about 3/4's had color codes like my 03F4.. That means that a few had different codes. Why is this? Me and my wiring guy (a wiring Jedi Knight) says that it appears to him that the MV factory staff seem to use whatever wires they have on their work bench and only use wiring charts as a "guideline" rather than a rule.. Even on my 03.. at least 3 wires would start out one color and change colors 3 times before getting to final connection... it's mystifying!! With that said.. my color codes listed below are about as close to a "norm" as we have been able to determine... Just giving you a heads up.. |
|
Parts/Materials
Needed: MV

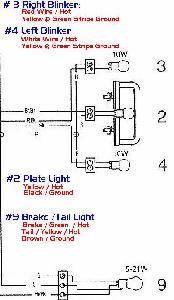

F4 Rear Lighting Color Codes:
(Click Image for larger view) |
| Removing
Rear Fender: 1. Remove both blinker lenses, pull out reflectors and unplug wires. 2. Lift seat, remove the (4) nuts holding computer module. Lift aside so you can get to the (3) screws holding the rear fender on. Remove the (3) screws that secure the fender. Set aside. 3. Remove the (2) screws holding the exhaust together just above the rear tire. The pipes will have to be slightly spread apart as the fender has to slide out the rear.. between the pipes. 4. Slide the entire fender out through the exhaust, carefully letting the blinker wires pull though the housing... 5. Reach up to the open area where the fender was attached and remove the triangular rubber gasket. Set aside. |
|
Mounting

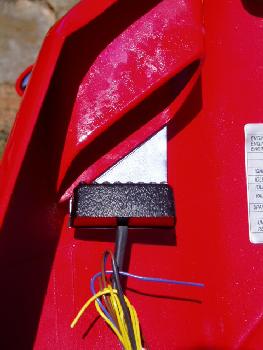

Lights: 1. Using cardboard,
I cut the design I wanted for my mounting plates. |
![]() |
|

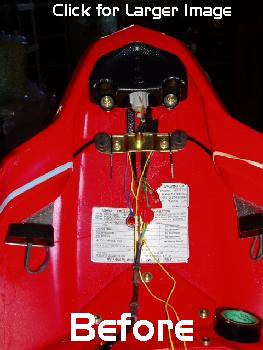

Wiring:
(Click
Image for larger view) May
your respective God Be with you.. Something mystical about current draw or something. On the first try, after wiring "appeared" perfect, only the brake and tail light LED's were working but when I turned the blinkers on....they would NOT blink at all... F@%*! I Immediately called Hyper-Lite and spoke with the designer who knew EXACTLY what the problem was. Says it usually occurs with Harleys. He referred me to Badland Motorcycle Products who sell (3) versions of Load Equalizers, which is what I/we need to solve the MV current problem. Any of the 3 equalizers would solve the problem, but I chose the more expensive version # 3 as it's solid state unlike the other two, cheaper versions. (The other two use transistors and was told if you forgot to turn your blinkers off.. the transistors might burn out.) Taking their advice,
I placed the order and 24 hours later, I have the little gizmo in hand..
|
| The Load Equalizer (Click image for larger view) is about 1.5" x 3" and fits perfectly by the computer module... It has (4) wires coming out of it. Instructions are simple. Two wires splice right into the turn signal wires, one goes directly to the ground on the battery, the last wire.. the ORANGE wire goes to the HOT tail light wire. The instructions do NOT tell you about the orange wire so I called Badlands who was very helpful with this. Spliced in the Load Equalizer wires and Vunderbah!! |
|

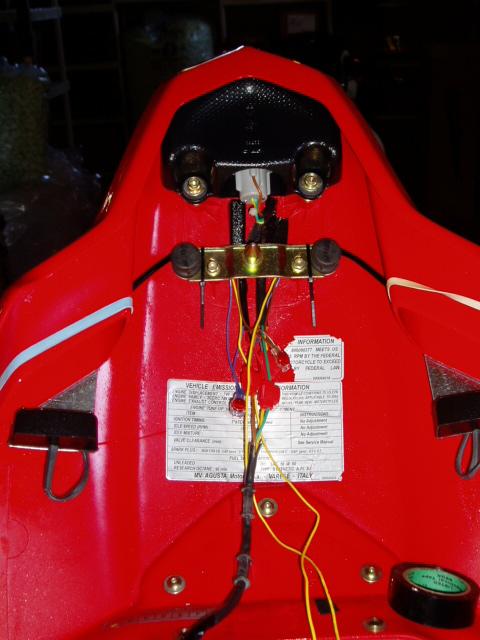

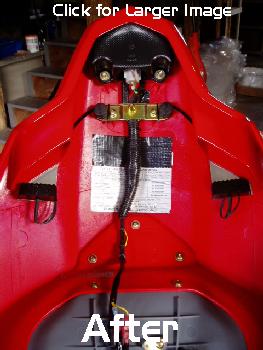

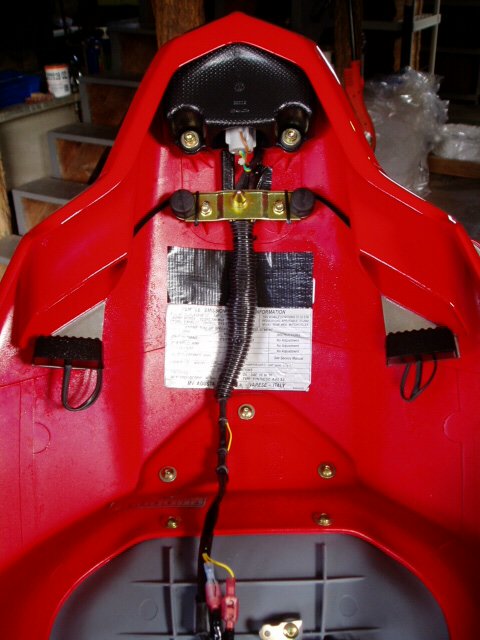

To complete the hardware install, you'll now need to install your Tridon EL12 variable load relay flasher. This is the easiest part of this project. Remove the left side body panel. You'll see 3 boxes mounted just by the frame. The two squarish ones on the ends are black. The middle one is GRAY. That is your factory flasher. Pull it out and you'll see two wires on the back. Unplug the factory unit and plug in the new furnished round flasher. Then slide it into place. That's it. Now that everything is working properly... the final step is to go back and make all your wiring look factory... not an easy chore. It'll take about an hour to go back and hide and tape up everything. I had to lengthen a few wires so I could hide and tie them out of the way. I also bought some corrugated tubing (at Home Depot) to bundle the main harness wires. that's about it... clean... and your rear lighting has increased by about 300%
|

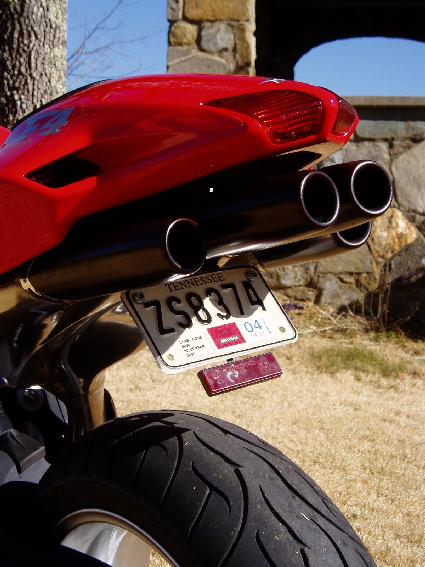

| Last
step is the Pirates'
Lair License Plate Relocator Kit install.... this is pretty much
a no-brainer by design... black
anodized
Note: Our kit accommodates standard US size 7" x 4" plates only. Check your plate dimensions before ordering. Will it fit longer plates? Yes, but only if the width is the standard 7". The only downside would be that the reflector probably would NOT be able to be used as the longer plate would hang down over that area. Otherwise.. no probs. If you are unsure.. call us at 828.628.7093 EST |
|
A chimp could do this install.. but I'll guess you don't have a chimp handy so pay attention. There are TWO ways of installing the Pirates' Lair License Plate Relocator Kit. Having tried both ways, I think that it's easier to install the (2) L-shaped hanger brackets onto the plate hanger first and THEN install to the bike.. unlike what this pic shows (see pic at right) . It's just a little easier. Basically.. get all the furnished bolts started but leave them loose... Either way is easy. Note: Not all of us are created equal.. some are heavy.. and some us us have our suspensions softer than others. I always recommend you check for plate relocator bracket clearance with the tire on a short ride before fully tightening everything. If you think your plate bracket is gonna make contact with the tire... adjust accordingly. OK.. with both all 4 screws to the L-shaped brackets started and loose... install your plate and leave those (2) screws loose as well. When you have everything on the bike, from the rear visually center everything and tighten accordingly. I'd advise using a drop of locktite but it's probably not necessary. After you get all the screws/nuts tight and it looks centered from the rear, go ahead and install the factory reflector. |
![]() |
| Last step before you partake of your much needed libations... When you removed the rear fender assembly you left a gaping triangular hole between the exhaust/tire area and your control box under your seat.(pic #1). You'd be surprised how much debris will get through this hole so we're gonna seal this up. I took some sheet metal and cut it to the exact same size as the fender's triangular rubber gasket..marked the holes and drilled accordingly. (pic #2) Once you get it drilled it's just a matter of bolting it in place. (pic #3) I actually put a bit of weather sealer around the edges to block out moisture. Now you can reinstall the (4) nuts holding computer module .. sit back.and reap the benefits of having a well lit up (and clean) ass... We're pretty much done.. |
![]() |
![]() |
![]() |
![]() |
